2150cc Fuel Injector Clinic Injector Set For 240SX 14mm Setup (High-Z)

SKU FIC-IS182-2150H
Save 2% Save 2%
Original price $ 914.00
Original price $ 914.00 - Original price $ 914.00
Original price $ 914.00
Current price $ 895.72
$ 895.72 - $ 895.72
Current price $ 895.72

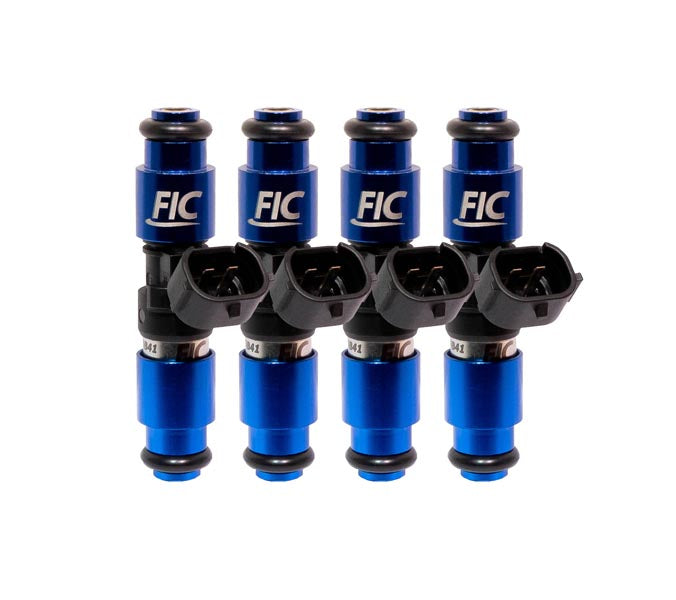

Nissan 240SX 14mm Fuel Injector Clinic Injector Set: 4 x 2150cc Saturated / High Impedance Ball & Seat Injectors. Largest high impedance injector ever! Latest injector technology. Great linearity and short pulse width repeatability. Includes solder in pigtails.

Please note that all FIC Fuel Injector Clinic injectors are designed as Top-Feed injectors. Each injector set is crafted to fit the stock fuel rail and intake manifold. However, it's important to be aware that there may be exceptional cases in certain applications. Therefore, we recommend verifying compatibility with your specific application before making a purchase.

This massive high performance injector is in a class of its own when low end throttle response and short pulse width control is required. State of the art Data Match Technology dynamic flow matching is used during the production of these injector sets due their large flow rate. This significantly improves the ECU’s ability to control these injectors in the sub 2ms pulse width area, typical of idle and part throttle conditions. Each injector is individually serial numbered and the results are provided on the Data Match Sheet providing the most complete flow matching and latency value information available in the industry today (Check FIC website for detailed information).

Fuel Injector Clinic injectors are flow tested and rated at 43.5psi (3Bar) at 90 degrees F fuel temperature using CF-16B calibration fluid.

CAUTION! The internal construction of this 2150cc/min injector includes a seal that has been found to swell when in contact with MTBE from oxygenated fuels like Q16 or VP Import. This swelling causes a significant reduction in flow through the injector and therefore renders it unsuitable for use with MTBE oxygenated fuels. Please be sure to follow the care instructions for these injectors since there are potential corrosion issues that may arise from prolonged disuse while exposed to alcohol based fuels (E85, etc.)

Fuel Injector Clinic injectors are set up to and include all o-rings needed to fit the factory application for the listed vehicle. For aftermarket or other unusual setups please contact us prior to placing your order to make sure you receive injectors that fit properly.

Every injector is covered against failure caused by defects in original manufacture by our lifetime warranty.

FITMENT SPECIFICATIONS
Bottom O-ring Outer Diameter 14mm
Cylinder Quantity 4
Height 64mm
Impedance High-Z
Top O-ring 14mm

HORSEPOWER SUPPORTED - 2150cc Injector
Fuel Pressure 43.5
WHP on E85 at 43psi 90%DC NA 963.96
WHP on E85 at 43psi 90%DC Supercharged 876.32
WHP on E85 at 43psi 90%DC Turbo 803.30
WHP on E85 at 58psi 90%DC NA 1113.37
WHP on E85 at 58psi 90%DC Supercharged 1012.15
WHP on E85 at 58psi 90%DC Turbo 927.81
WHP on Gas at 43psi 90%DC NA 1253.14
WHP on Gas at 43psi 90%DC Supercharged 1139.22
WHP on Gas at 43psi 90%DC Turbo 1044.29
WHP on Gas at 58psi 90%DC NA 1447.38
WHP on Gas at 58psi 90%DC Supercharged 1315.80
WHP on Gas at 58psi 90%DC Turbo 1206.15

We usually ship all orders within 1 day unless there is an issue with the order. In that case, we will contact you to find the best solution.
