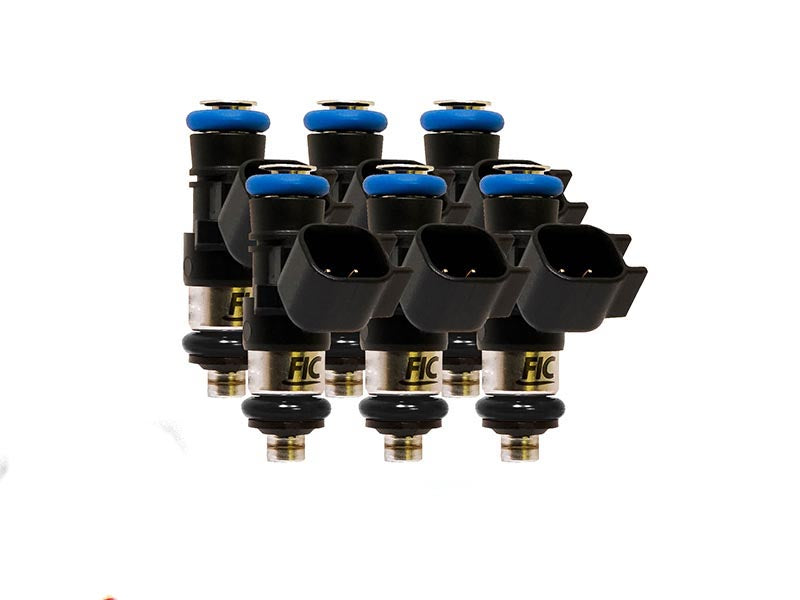

1650cc Fuel Injector Clinic Injector Set For Supra 5th Gen J29/DB (High-Z)
Toyota Supra 5th Gen J29/DB Fuel Injector Clinic Injector Set to fit OEM Fuel Rail: 6x1650cc High Impedance Ball & Seat Injectors. These injectors utilize the latest technology and provide great linearity and short pulse width repeatability. Includes pigtails PGT JET6.
Please note that all FIC Fuel Injector Clinic injectors are designed as Top-Feed injectors. Each injector set is crafted to fit the stock fuel rail and intake manifold. However, it's important to be aware that there may be exceptional cases in certain applications. Therefore, we recommend verifying compatibility with your specific application before making a purchase.
Please note that Fuel Injector Clinic injectors are specifically designed to work with aftermarket port injection plates and fuel rails for the listed vehicle. They come with all the necessary o-rings for installation. However, these injectors are not compatible with the stock direct injector fitment and should not be used as replacements for them.
This injector set is precisely matched using Fuel Injector Clinic's proprietary Data Match Technology. Each injector is individually serial numbered and the results are provided on the Data Match Sheet providing the most complete flow matching and latency value information available in the industry today.
Fuel Injector Clinic injectors are flow tested and rated at 43.5psi (3Bar) at 90deg F fuel temperature using CF-16B calibration fluid.
Superior short pulse width control and state of the art matching make these injectors easy to tune and provide great drivability.
Fuel Injector Clinic injectors are set up to and include all o-rings needed to fit the factory application for the listed vehicle. If you are using aftermarket or other unusual setups please contact us prior to placing your order to make sure you receive injectors that fit properly.
Every injector is covered against failure caused by defects in original manufacture by our lifetime warranty.
This set of injectors requires you to change the injector plug on the wiring harness in your car. This can be done by soldering in the pigtails (included with purchase) to replace the plugs currently on your harness, or you can choose to purchase the optional plug-n-play adaptors which will convert from the type of plugs on these injectors to the plugs on your harness without any need for cutting or soldering.
This plug conversion is made necessary because FIC always chooses to provide brand new, unused injectors for its performance applications. We do not believe that increasing the chance of a failure due to using remanufactured or core program based injectors is ever warranted.
| FITMENT SPECIFICATIONS | |
| Bottom O-ring Outer Diameter | 14mm |
| Cylinder Quantity | 6 |
| Height | 38mm |
| Impedance | High-Z |
| Top O-ring | 14mm |
| HORSEPOWER SUPPORTED - 1650cc Injector | |
| Fuel Pressure | 43.5 |
| WHP on E85 at 43psi 90%DC NA | 739.78 |
| WHP on E85 at 43psi 90%DC Supercharged | 672.53 |
| WHP on E85 at 43psi 90%DC Turbo | 616.48 |
| WHP on E85 at 58psi 90%DC NA | 854.45 |
| WHP on E85 at 58psi 90%DC Supercharged | 776.77 |
| WHP on E85 at 58psi 90%DC Turbo | 712.04 |
| WHP on Gas at 43psi 90%DC NA | 961.71 |
| WHP on Gas at 43psi 90%DC Supercharged | 874.29 |
| WHP on Gas at 43psi 90%DC Turbo | 801.43 |
| WHP on Gas at 58psi 90%DC NA | 1110.78 |
| WHP on Gas at 58psi 90%DC Supercharged | 1009.80 |
| WHP on Gas at 58psi 90%DC Turbo | 925.65 |
