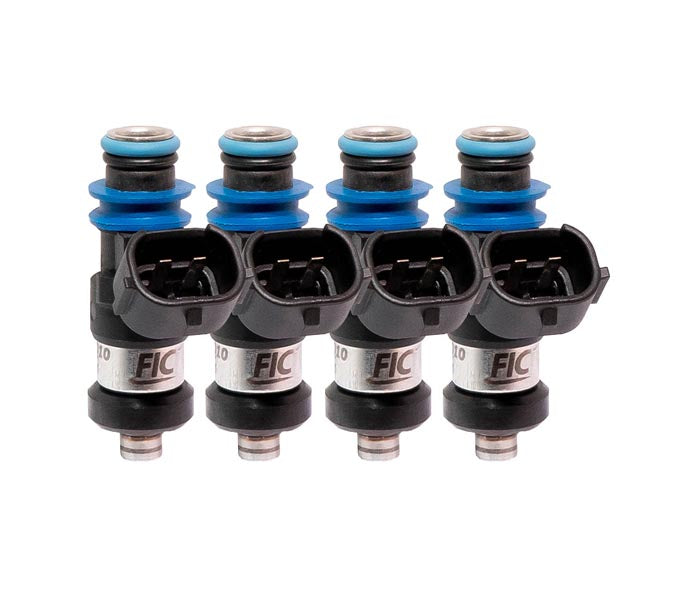

2150cc Fuel Injector Clinic Injector Set For Scion FR-S (High-Z)
Scion FR-S Fuel Injector Clinic Injector Set: 4x2150cc Saturated / High Impedance Injectors. These are the largest high impedance injectors available! Utilizing the latest injector technology and featuring state of the art matching with Data Match Technology. Drop-in plug fit! DO NOT USE WITH VP Import, Q16 or OTHER MTBE OXYGENATED FUELS.
Please note that all FIC Fuel Injector Clinic injectors are designed as Top-Feed injectors. Each injector set is crafted to fit the stock fuel rail and intake manifold. However, it's important to be aware that there may be exceptional cases in certain applications. Therefore, we recommend verifying compatibility with your specific application before making a purchase.
This massive high performance injector is in a class of its own when low end throttle response and short pulse width control is required. State of the art Data Match Technology dynamic flow matching is used during the production of these injector sets due their large flow rate. This significantly improves the ECU’s ability to control these injectors in the sub 2ms pulse width area, typical of idle and part throttle conditions. Each injector is individually serial numbered and the results are provided on the Data Match Sheet providing the most complete flow matching and latency value information available in the industry today (Check FIC website for detailed information).
Fuel Injector Clinic injectors are flow tested and rated at 43.5psi (3Bar) at 90 degrees F fuel temperature using CF-16B calibration fluid.
CAUTION! The internal construction of this 2150cc/min injector includes a seal that has been found to swell when in contact with MTBE from oxygenated fuels like Q16 or VP Import. This swelling causes a significant reduction in flow through the injector and therefore renders it unsuitable for use with MTBE oxygenated fuels. Please be sure to follow the care instructions for these injectors since there are potential corrosion issues that may arise from prolonged disuse while exposed to alcohol based fuels (E85, etc.)
Fuel Injector Clinic injectors are set up to and include all o-rings needed to fit the factory application for the listed vehicle. For aftermarket or other unusual setups please contact us prior to placing your order to make sure you receive injectors that fit properly.
Every injector is covered against failure caused by defects in original manufacture by our lifetime warranty.
| FITMENT SPECIFICATIONS | |
| Bottom O-ring Outer Diameter | 16mm Square Seal |
| Cylinder Quantity | 4 |
| Height | 38mm |
| Impedance | High-Z |
| Top O-ring | 11mm |
| HORSEPOWER SUPPORTED - 2150cc Injector | |
| Fuel Pressure | 43.5 |
| WHP on E85 at 43psi 90%DC NA | 963.96 |
| WHP on E85 at 43psi 90%DC Supercharged | 876.32 |
| WHP on E85 at 43psi 90%DC Turbo | 803.30 |
| WHP on E85 at 58psi 90%DC NA | 1113.37 |
| WHP on E85 at 58psi 90%DC Supercharged | 1012.15 |
| WHP on E85 at 58psi 90%DC Turbo | 927.81 |
| WHP on Gas at 43psi 90%DC NA | 1253.14 |
| WHP on Gas at 43psi 90%DC Supercharged | 1139.22 |
| WHP on Gas at 43psi 90%DC Turbo | 1044.29 |
| WHP on Gas at 58psi 90%DC NA | 1447.38 |
| WHP on Gas at 58psi 90%DC Supercharged | 1315.80 |
| WHP on Gas at 58psi 90%DC Turbo | 1206.15 |
